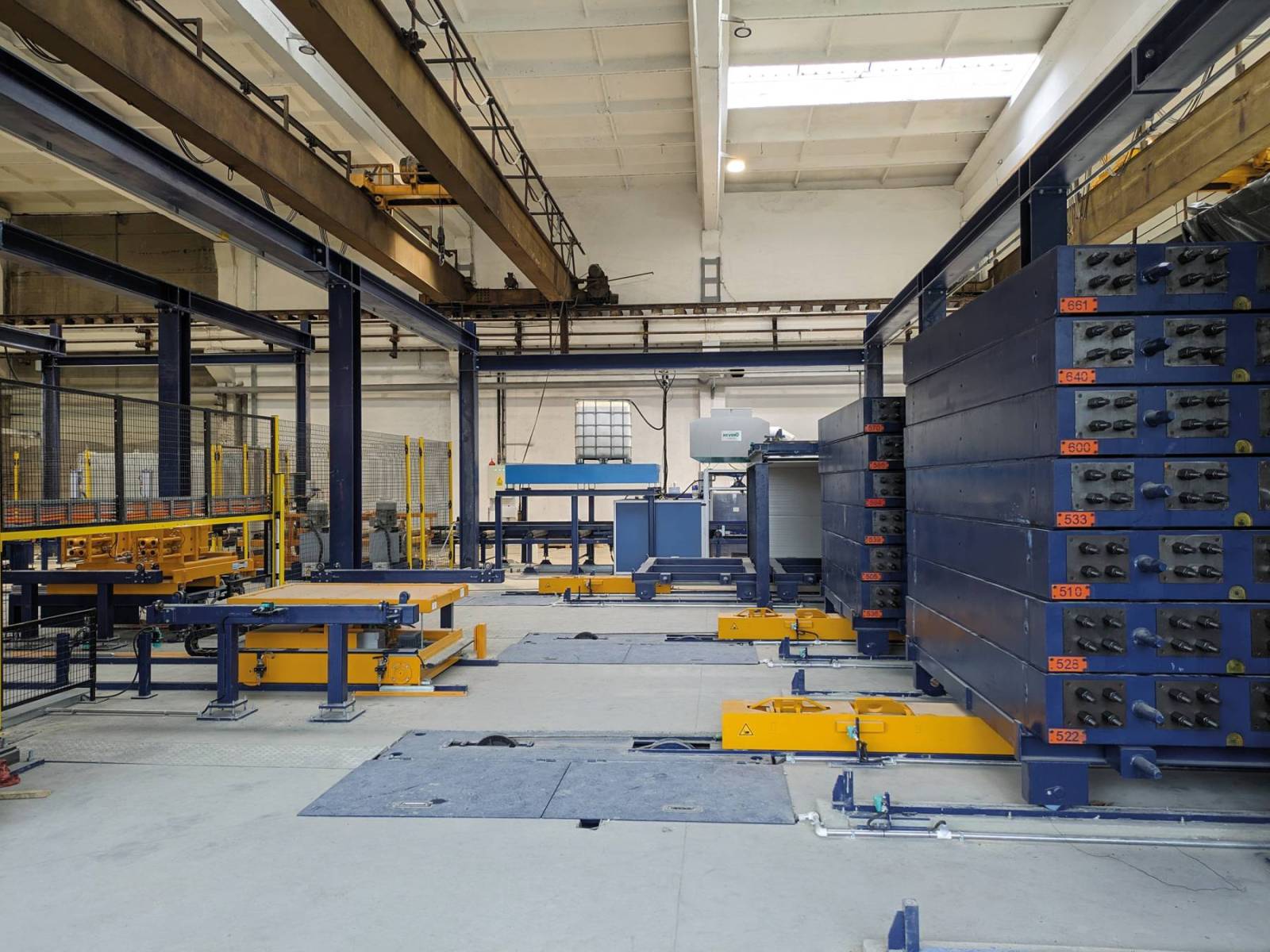

Carousel for prestressed railway sleepers type B70

• Moulds: 300n°
• Working stations: 20n°
• Curing chamber: 300 positions in 4 curing tunnels
• Building dimensions: 73m x 23m
• Output: approximately 189.000 sleepers per year
  • 756 sleepers per shift
  • 1 shifts per day
  • 250 days per year

Components:

• Longitudinal and transversal mould transport system
• Manual oiling
• Manual magnet placing
• Semi-automated rebar placing
• Fully automated tensioning and detensioning
• Concrete spreader
• MagVib compacting station
• Manually controlled stacking crane
• Closed curing chamber without heating
• Fully automated transport, turning and demoulding system
• Control system with WAvisionplus software
