Carrousel plants
Circulation plant for sandwich walls, solid walls, façade elements and solid slabs
Circulation line, with dual concrete spreader and finishing line.
- Pallets: 26n° of 12,5m x 3,65m
- Working stations: 16n°
- Curing chamber: 20 positions
- Building dimensions: 95m x 24m x 11m
- Output: 2,5 pallets per hour
Components:
- Longitudinal and transverse pallet transport system
- Pallet cleaning, plotting and oiling / retarder device
- Shuttering transport with cleaner and oiler
- Pallet offline positions
- Shuttering handling crane

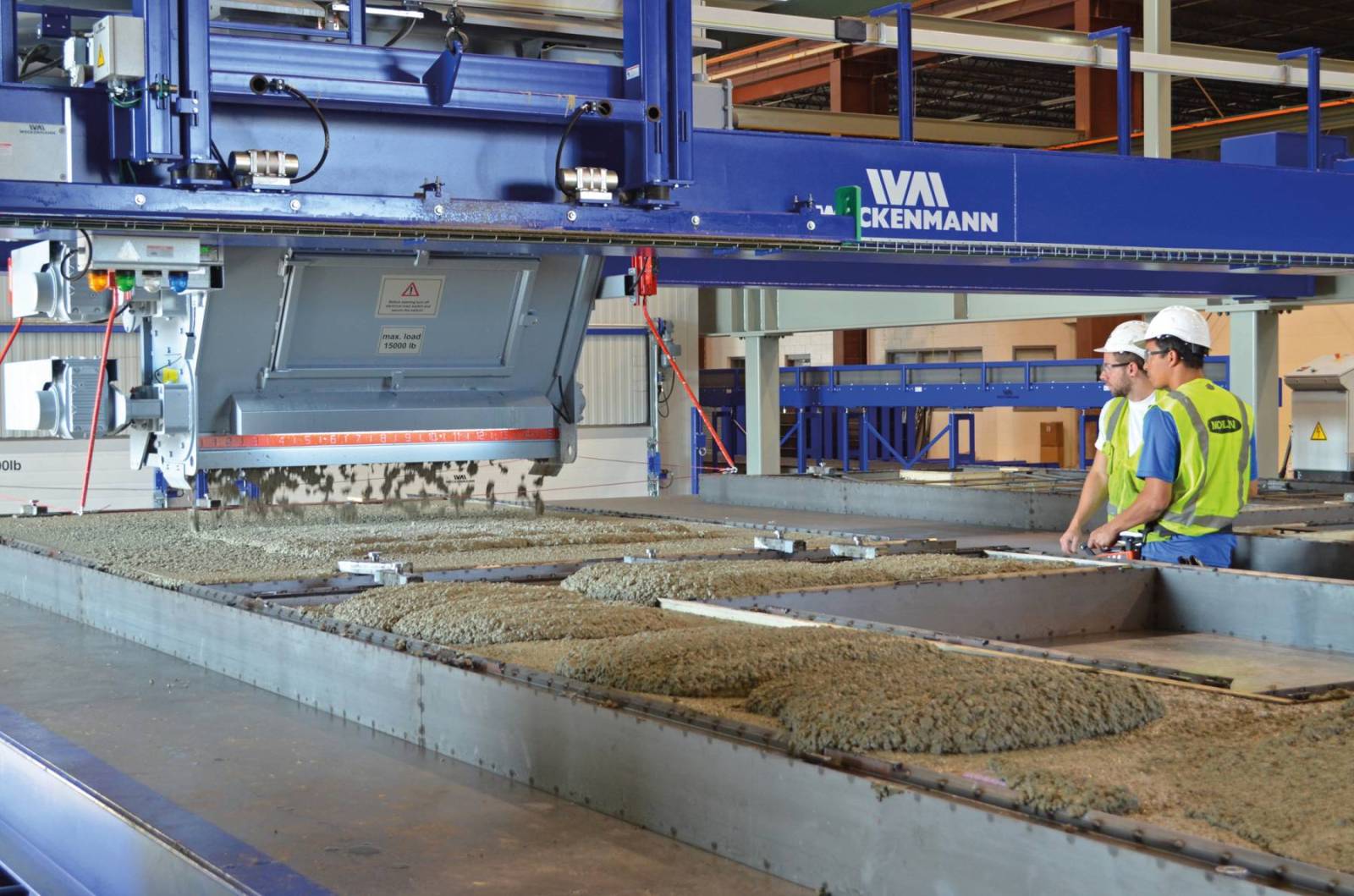

- Concrete spreader with 2 feeding buckets
- Compacting station
- Power floating device on top of curing rack
- Finishing line for façade elements
- Curing racks with rack operator

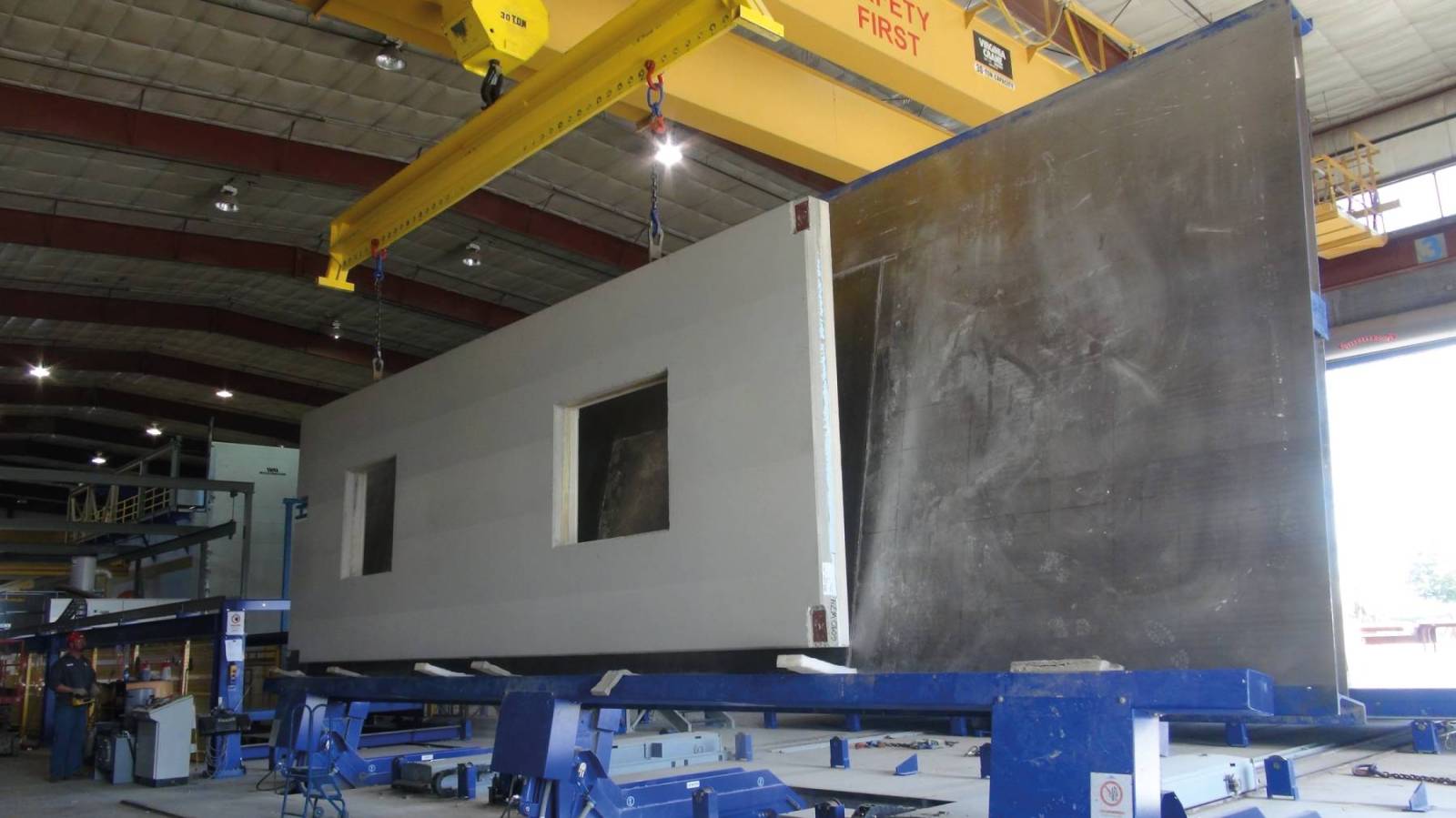

- Pallet tilting station
- Run-off trucks
