Circulation plant for prestressed railway sleepers type B70

Sleeper circulation plant with quadruple moulds.

• Moulds: 400n°
• Working stations: 12n°
• Curing chamber: 352 positions

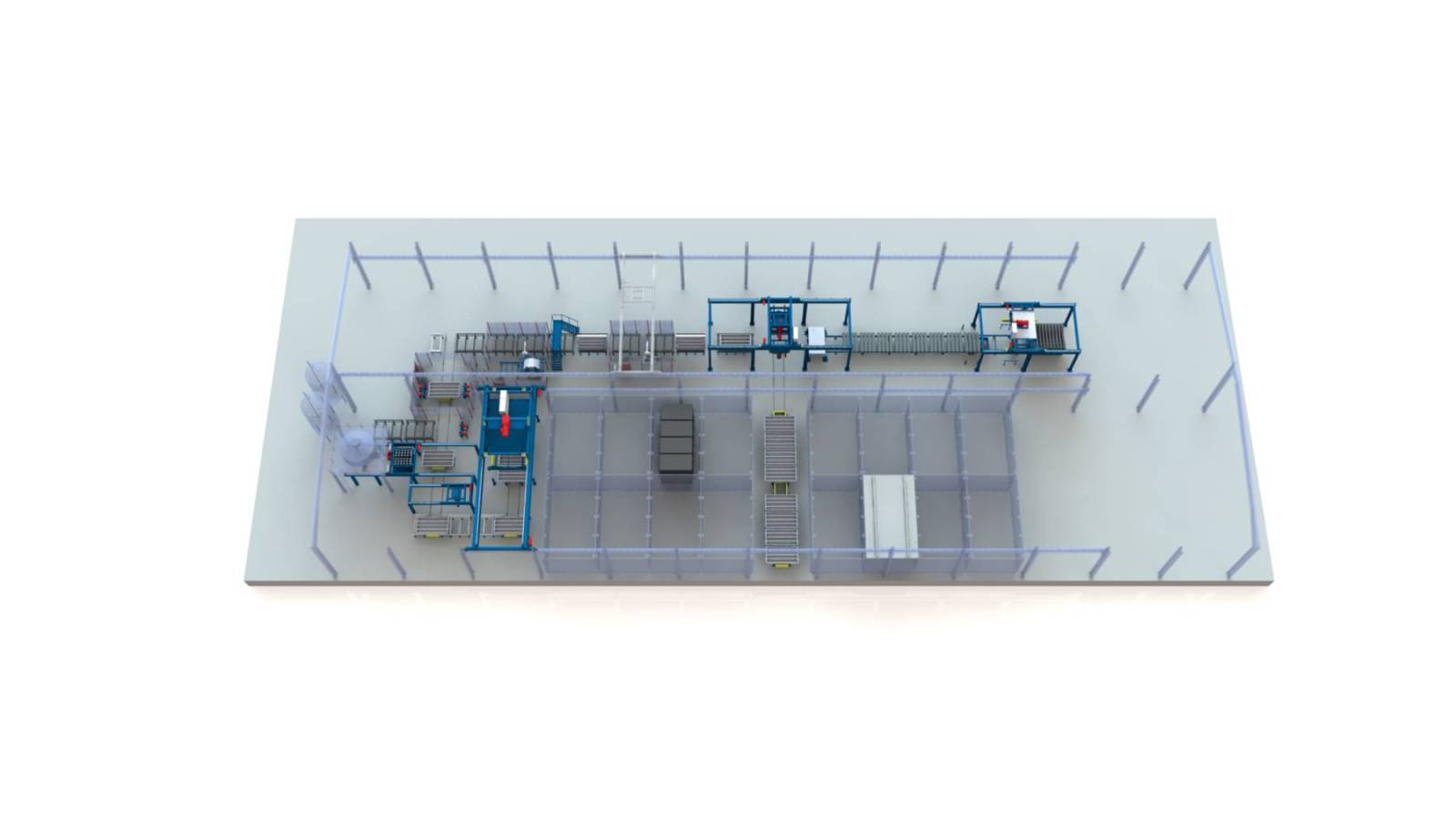

• Building dimensions: 80m x 28m x 9m
• Output: approximately 550.000 sleepers per year
  • 800 sleepers per shift
  • 3 shifts per day
  • 230 days per year

Components:

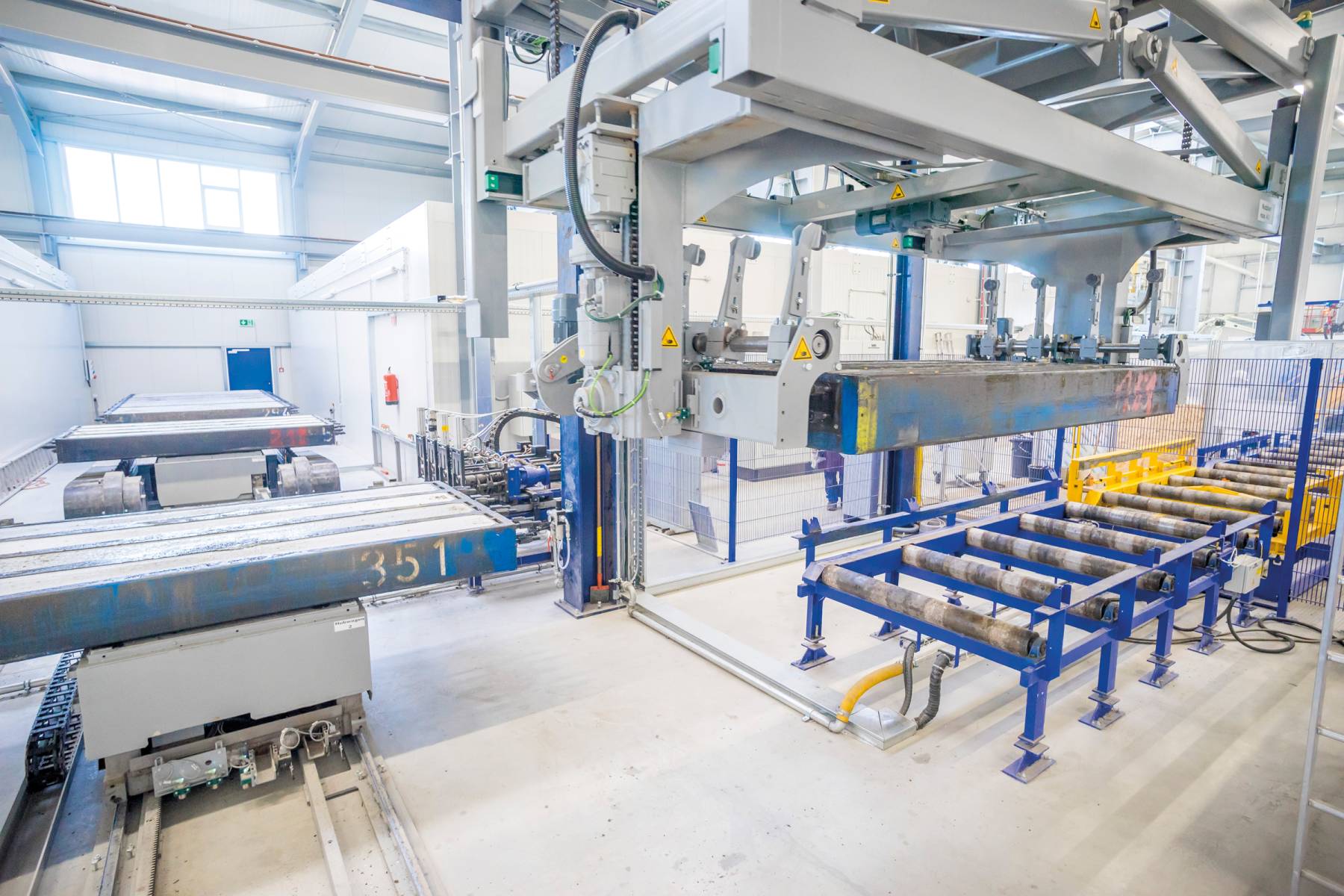

• Longitudinal and transversal mould transport system

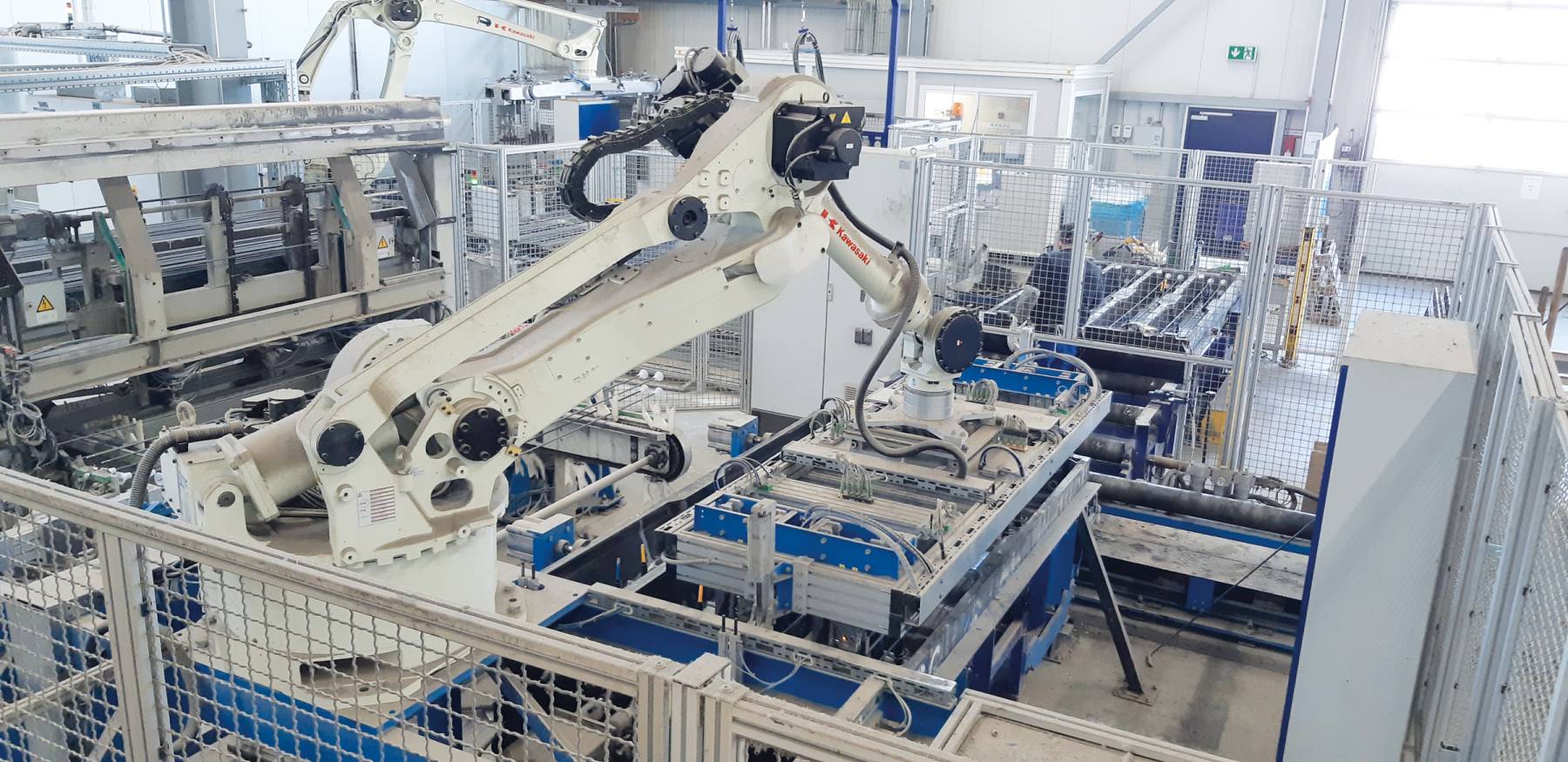

• Mould oiling robot
• Magnet placing robot

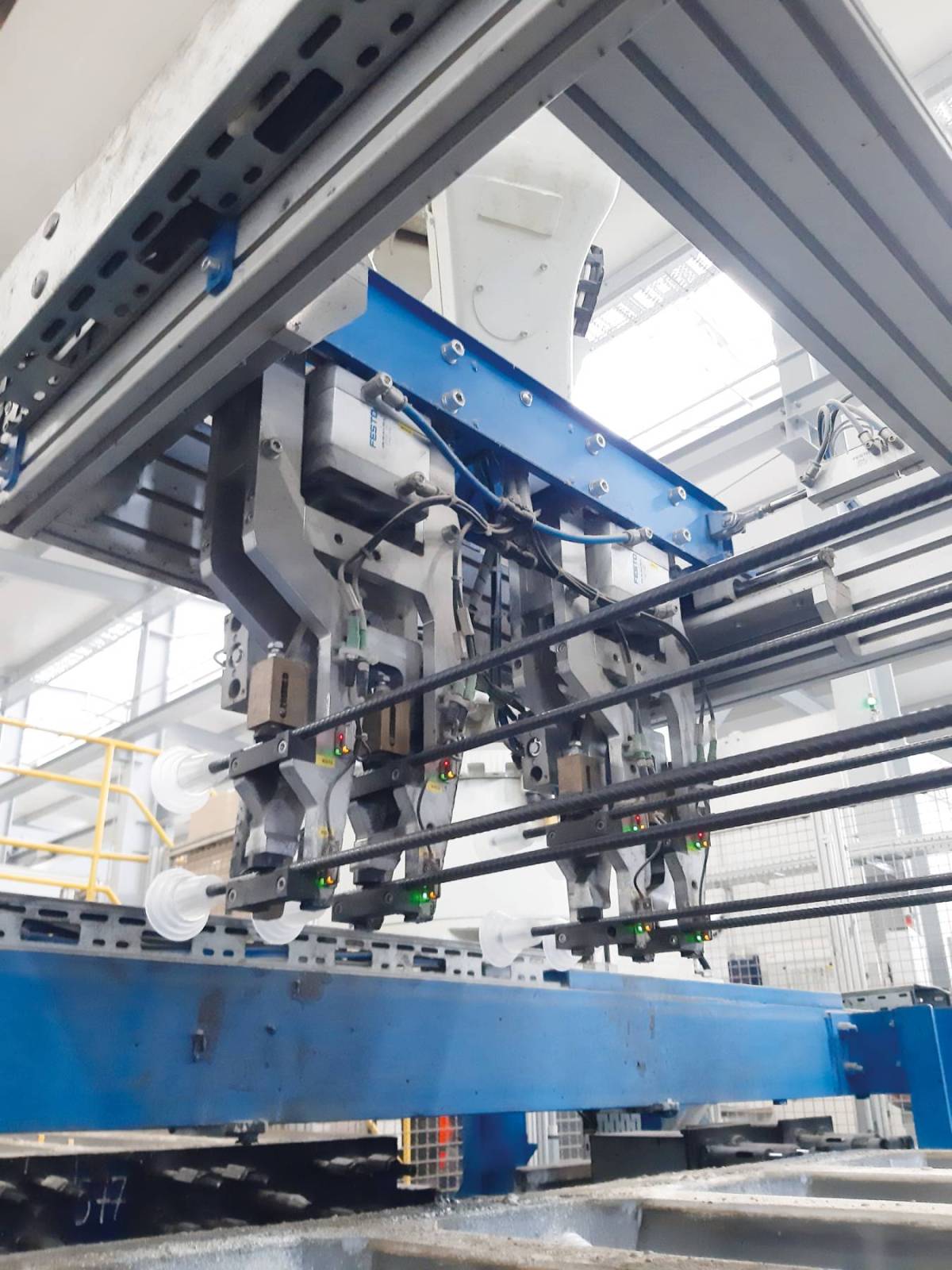

• Rebar placing robot
• Fully automated tensioning and detensioning

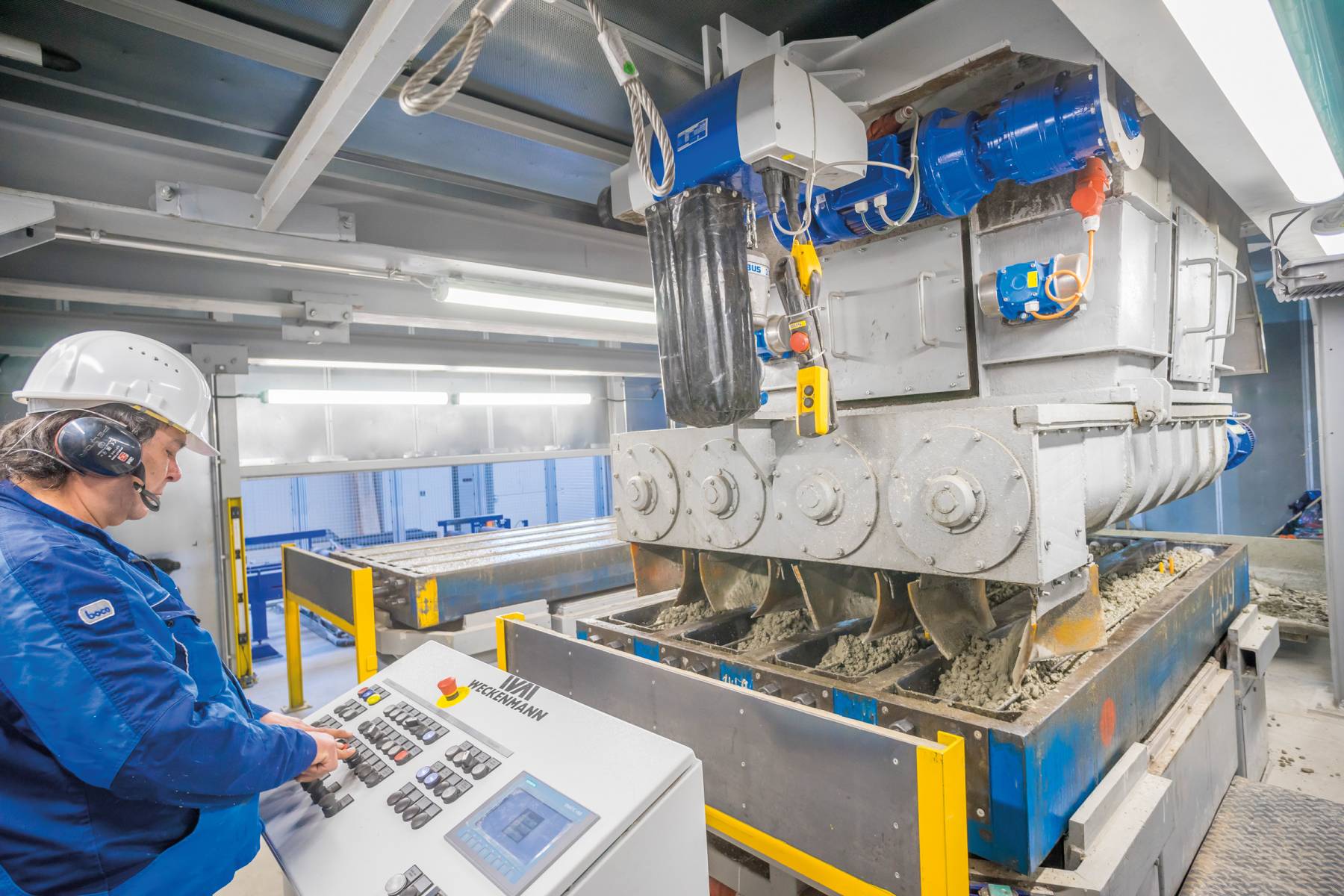

• Concrete spreader
• MagVib compacting station
• Fully automated stacking crane
• Curing chamber with watering system

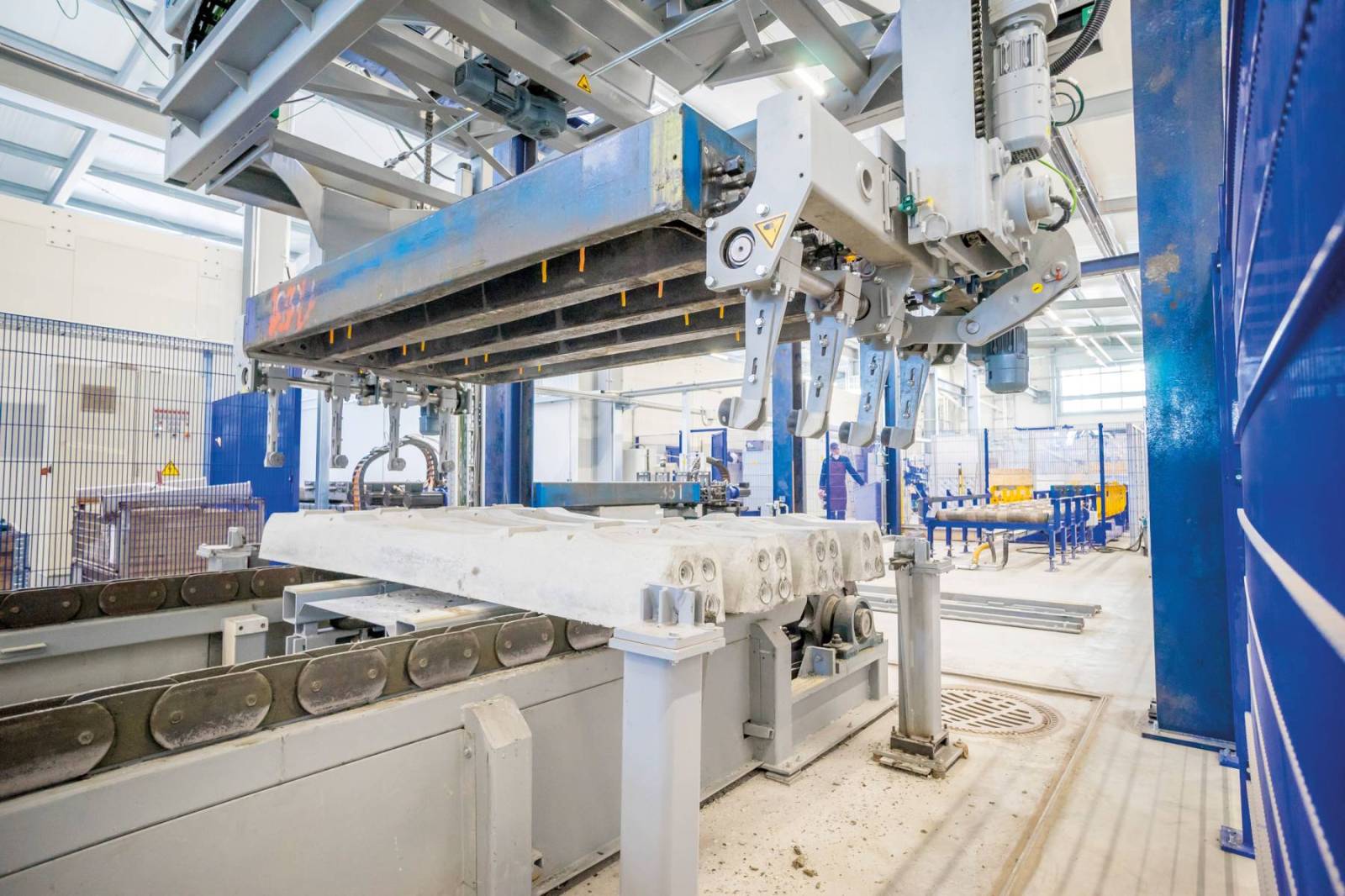

• Fully automated transport, turning and demoulding system
• Control system with WAvisionplus software

Show more of:

• Circulation plants
• Germany

Linked products

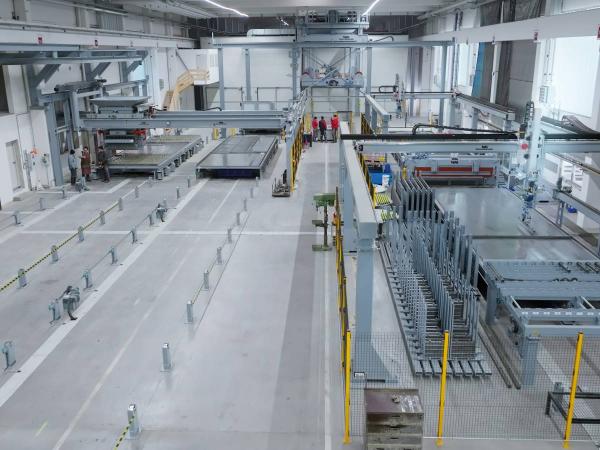

Carrousel plants
